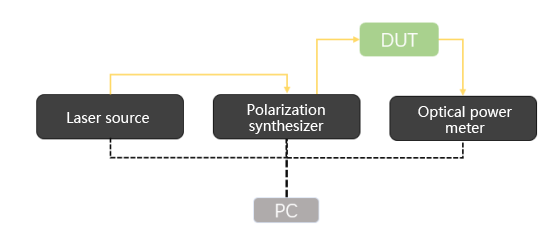

· Fast polarization state switching: The polarization synthesizer is used to achieve fast polarization state switching, which can complete the measurement of various polarization states in a short time and improve the test efficiency. The output power and polarization state are recorded synchronously to ensure data synchronization and consistency during measurement.

· Muller Matrix method: The international standard Muller matrix method (IEC 61300-3-2 and IEC 61300-3-29) is used to provide extremely high measurement accuracy and reliability.

· Multi-channel test: Support multi-channel test, suitable for complex optical network components, such as multiplexers and switches, can simultaneously measure multiple ports, improve test efficiency.

· Customized software: graphical test process, one-click generation of Datasheet, maximize the simplification of the test process. Improve production efficiency while ensuring accurate test results.

· High dynamic range and high resolution: Supports high dynamic range and high resolution measurement, especially suitable for fine wavelength measurement of DWDM components.

1. The output wavelength of 1240-1380 nm/ 1340-1495 nm/ 1450-1650 nm/1490-1640 nm covers the OESCL measurement band;

2. Maximum wavelength scanning speed 200 nm/s;

3. Maximum power of laser source: > +12 dBm; Absolute wavelength accuracy: ±1.5 pm; Signal to SSE ratio: ≥ 80 dB/nm;

4. 6 kinds of SOP fast switching, as short as 10μS switching time; Provides stable output of 50μS;

5. The minimum sampling time of optical power meter is 1μS.
